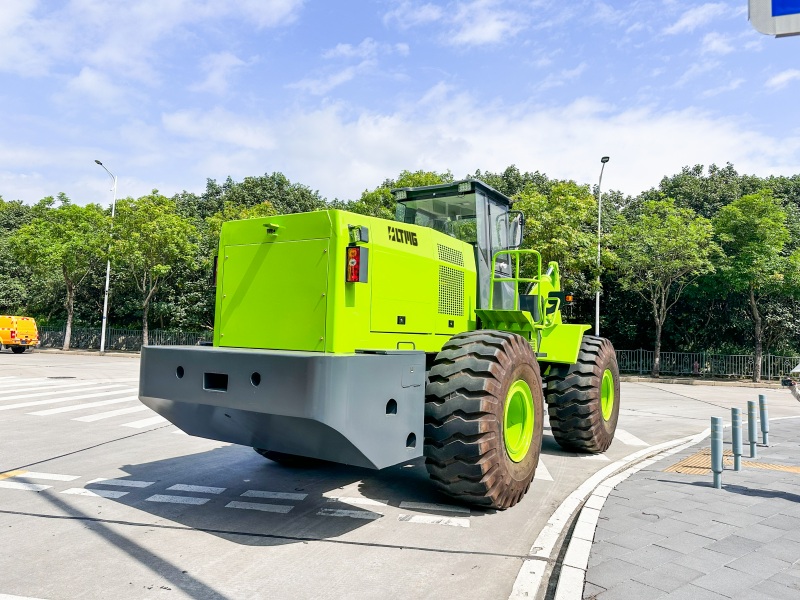

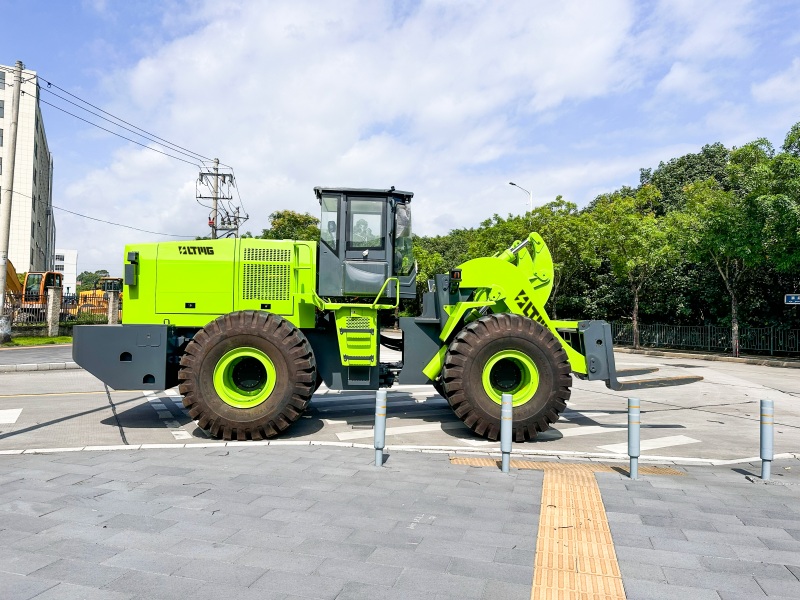

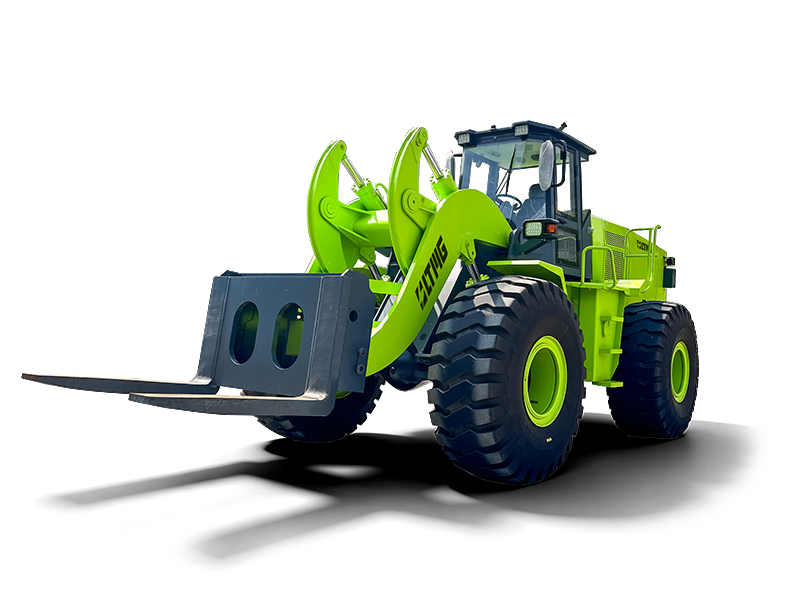

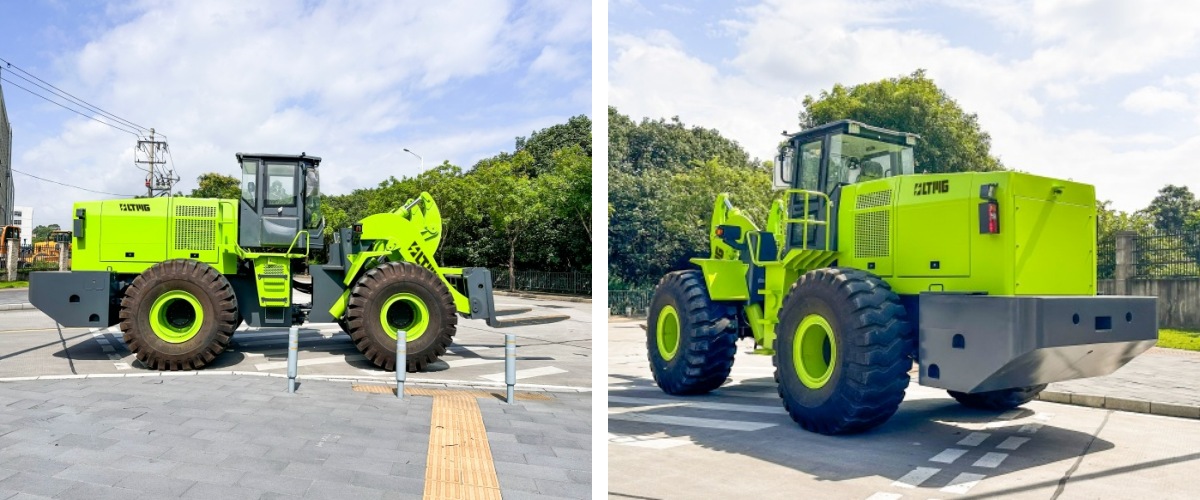

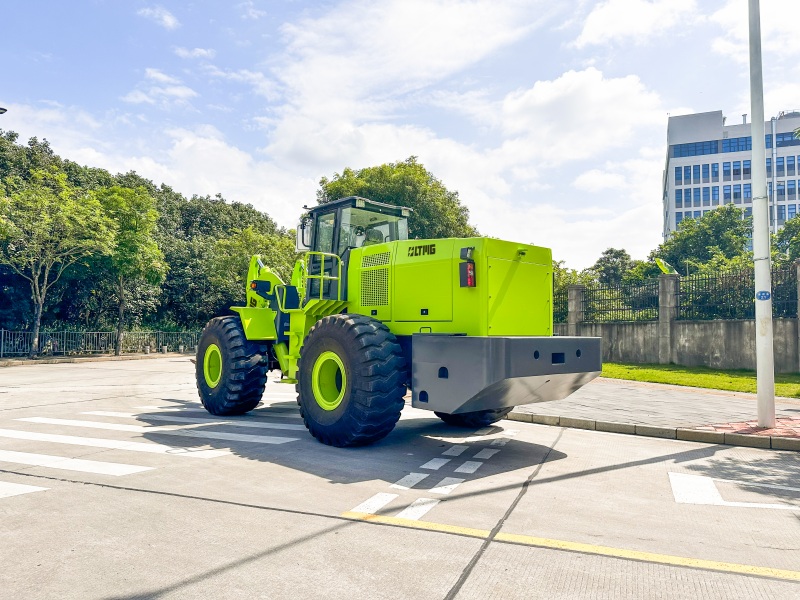

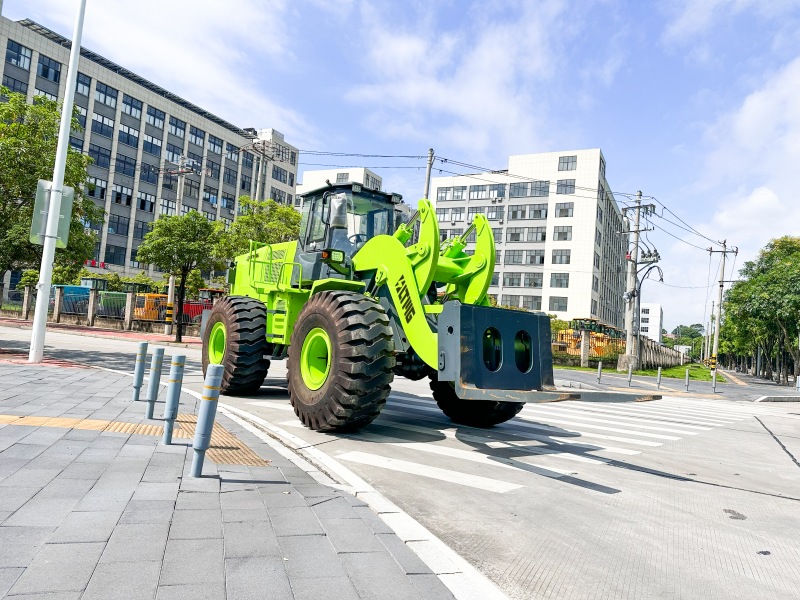

Built for heavy-duty material handling, the 23-ton electric forklift loader combines a 282 kWh battery, intelligent thermal management, fast charging, and smart monitoring. Its robust environmental protection and extended runtime deliver reliable, efficient operation for quarries, stone yards, mines, ports, and industrial sites.
Model :
LT23EVKapasitas beban :
23000KGBerat Operasi :
25000KG
23 ton Electric Forklift Loader Features
1. Intelligent Thermal Management: An advanced thermal management system and energy recovery technology improve efficiency while supporting safe, comfortable operation.
2. Smart Monitoring and Remote Diagnostics: The display provides real-time operating status, charging alerts, and fault information, while remote diagnostics help identify issues and support troubleshooting.
3. Reliable Protection for Harsh Environments: Key components feature IP67-rated protection against dust and water. Designed for demanding conditions, the system supports safe operation in temperatures from -40°C to 60°C.
4. 282 kWh Battery for Extended Operation: A high-capacity 282 kWh battery and coordinated energy management support more than six hours of continuous operation on a full charge.
5. Fast and Flexible Charging: Two charging ports support single- or dual-connector charging. A full charge takes approximately one hour with a 240 kW charger, or just 40–50 minutes with a 300 kW charger.
23 ton Electric Forklift Loader Technical Parameters
| Parameter | Unit | LT23EV |
| Rated Load | kg | 23000 |
| Fork Size (L × W × H) | mm | 1500×250×120 |
| Operating Weight | kg | 25000 |
| Motor Rated Power | kW | 290 |
| Fork Lifting Height | mm | 3200 |
| Unloading Distance | mm | 1240 |
| Wheelbase | mm | 4236 |
| Track Width | mm | 2396 |
| Maximum Traction Force | kN | 170 |
| Maximum Lifting Force | kN | 174 |
| Three-Item Cycle Time | s | 9.7 |
| Lifting Time | s | 5.8 |
| Lowering Time | s | 3.5 |
| Maximum Climbing Angle | ° | 28 |
| Steering Angle | ° | 40 |
| Forward Speed (1st / 2nd Gear) | km/h | 18/36 |
| Reverse Speed (1st / 2nd Gear) | km/h | 18/36 |
| Overall Dimensions (L × W × H) | mm | 8660×2996×3520 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
The FAQ of Electric Forklift Loader
1. Why choose us?
As a manufacturer, LTMG Industrial is committed to offering not only products with high quality and performance and competitive price, such as Wheel Loader, Electric Loader, Backhoe Loader, Skid Steer Loader, Forklift/Log Loader, Underground Loader, Telescopic Loader, Rough Terrain Forklift, Road Roller, but also on-time delivery and comprehensive 7/24 after-sales services.
2. What is the product range of our factory?
LTMG Industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,front loader and related attachments. We can also customize non-standard products according to customers' requirements.
3. What payment terms can we accept?
Normally, 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. How about our delivery time?
Usually, it will take 15 to 30 days after receiving your deposit. About standard products, we always
have them in stock and can deliver them immediately. But customized products will take more time, depending on the requirements of your order.
5. Can we provide OEM service?
LTMG Industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
