This high-efficiency tractor is powered by a China Emission II diesel engine offering low fuel consumption and high torque. It features a versatile 8F+2R / 8F+8R transmission (with optional creeper) and double PTO speed for superior implement matching. The design includes a flat floor and the option for a cab, ensuring comfort and productive farm work.
Model :
LY254Mesin :
Laidong KM385BTKekuatan :
25HPODM/OEM :
Support

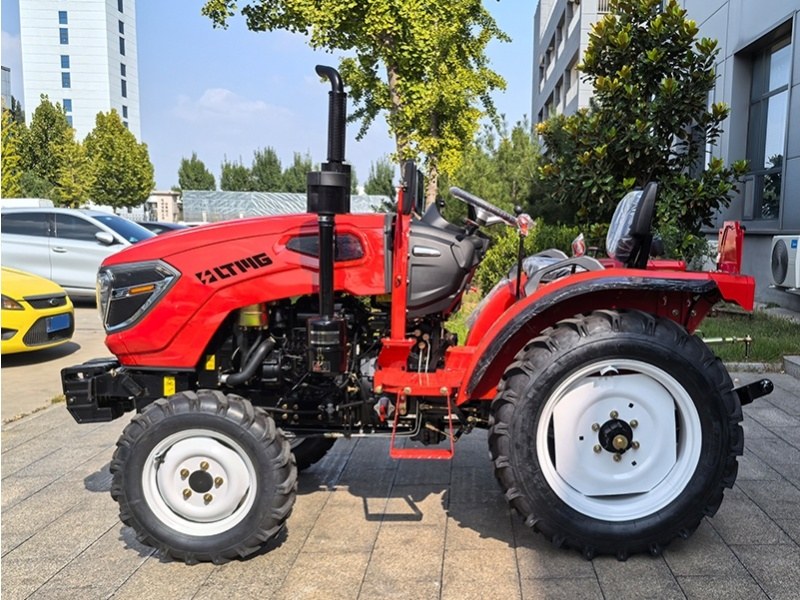

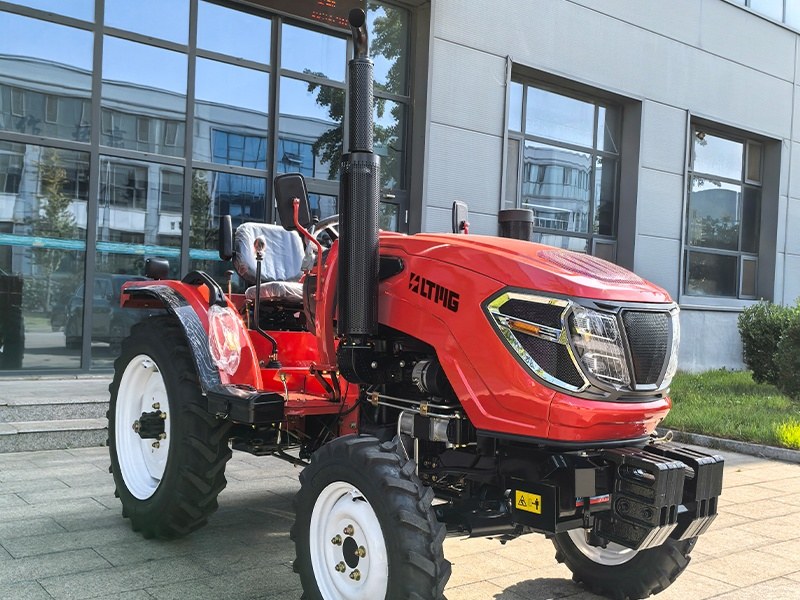

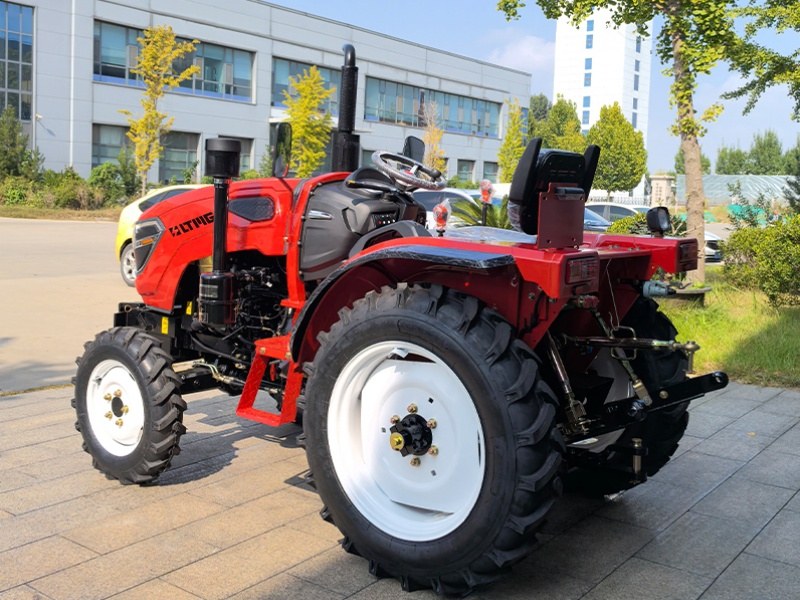

25HP 4-Wheel-Drive Tractor for All Terrain
* Engine: China Emission II Standard Diesel, Low Fuel Consumption, High Torque
* Transmission: 8F+2R / 8F+8R (Creeper optional) for High Working Efficiency
* Versatility: Double PTO Speed (540/1000 or 540/720 rpm)
* Convenience: Optional Hydraulic Lifter
*Comfort: Flat Floor / Open Station / Optional Cab
25HP 4-Wheel-Drive Tractor Specification
|
Model |
LY254 |
|
Tractor power |
25hp |
|
Drive Type |
4X4 |
|
Chassis type |
TY |
|
Min service weight |
1360Kgs |
|
Minimum ground clearance |
340mm |
|
Diesel Engine |
Laidong KM385BT, |
|
Engine power |
18.4kW |
|
Wheel Base |
1680mm |
|
Overall dimension（L*W*H） |
3250*1400*2000mm |
|
Suspension type |
three-point linkage CATI |
|
Hydraulic output |
One group / two groups are optional |
|
PTO speed |
540/1000 |
|
PTO spline number |
6 |
|
Clutch |
single-stage clutch/double-stage clutch |
|
Steering |
hydraulic steering |
|
Gearshift |
8F+2R/8F+8R |
|
Theoretical Speed |
Forward:2.06-31.30 Reverse:2.71-12.52 |
|
Tires size |
6.0-16/9.5-24; 6.5-16/11.2-24; 7.5-16/11.2-28; 7.5-20/12.4-28/7.5-16/13.6-24 |
With technological innovation, our product configuration and parameters will continue to change without notice.
If there is any doubt, the specific confirmation of our international trade sales shall prevail.

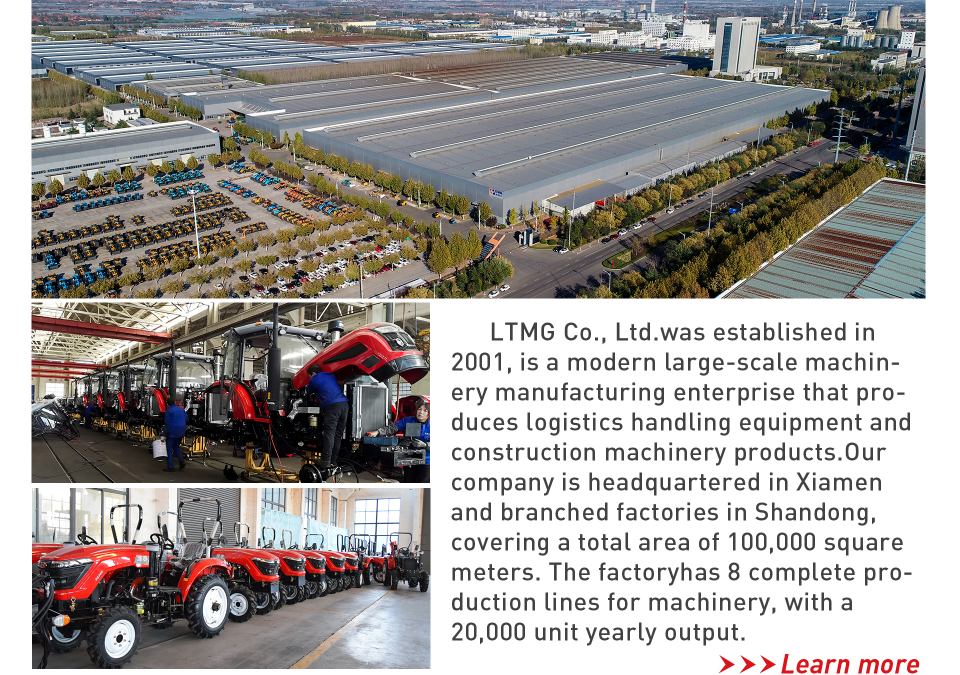

Reliable Manufacturing & Delivery
At our tractor manufacturing facility, we pride ourselves on having highly reliable and robust production capabilities. We don't just build tractors; we offer a complete, one-stop service solution tailored to meet your comprehensive needs. From initial consultation and custom specifications to manufacturing and ongoing support, we deliver exceptional quality and integrated solutions that you can truly depend on.
FAQ
Q: What is the engine power range of your tractors?
A: Our tractors offer engine power ranging from 25HP to 220HP to meet various agricultural and commercial needs.
Q: Are your tractors 2WD or 4WD?
A: We provide both 2WD and 4WD tractors, allowing you to choose based on terrain and operational requirements.

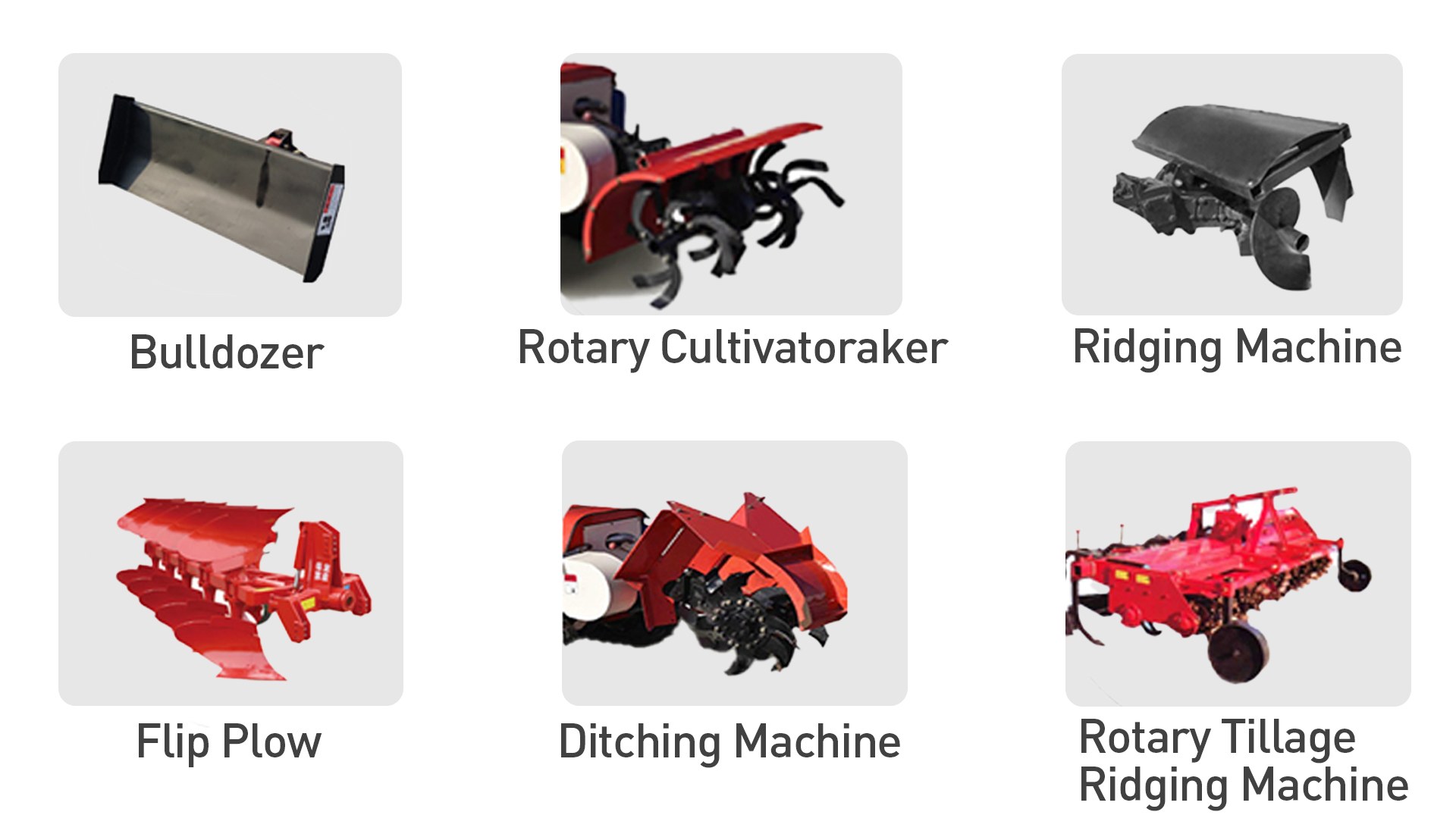

Q: Which types of implements or attachments are compatible with your tractors?
A: Our tractors are compatible with a wide range of implements, including plows, tillers, harvesters, trailers, and other farm attachments.
