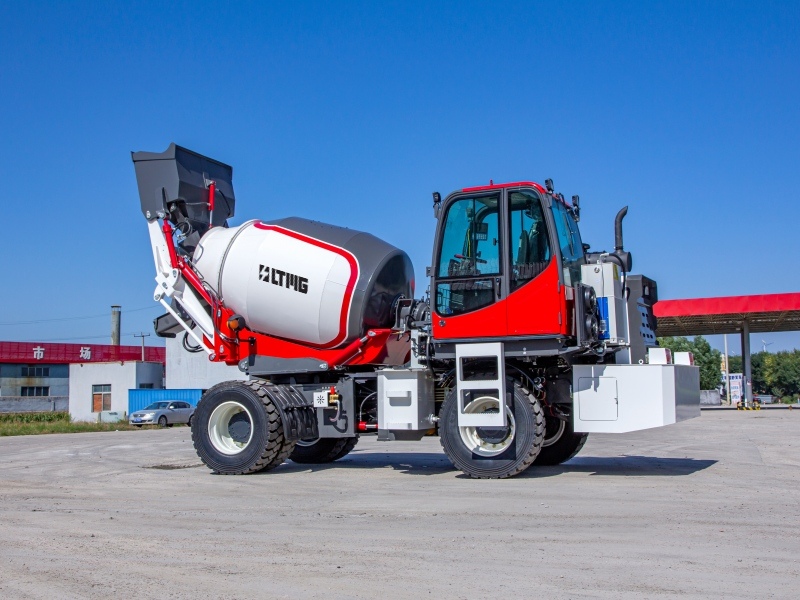

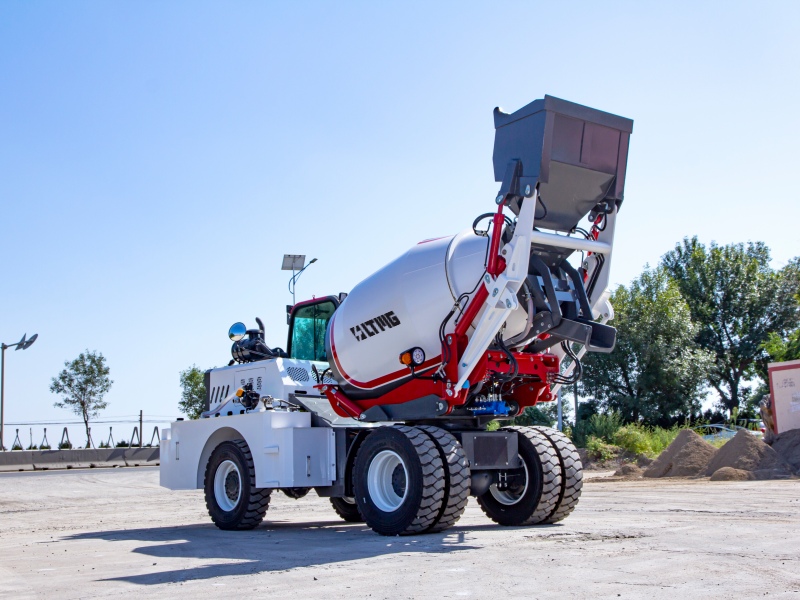

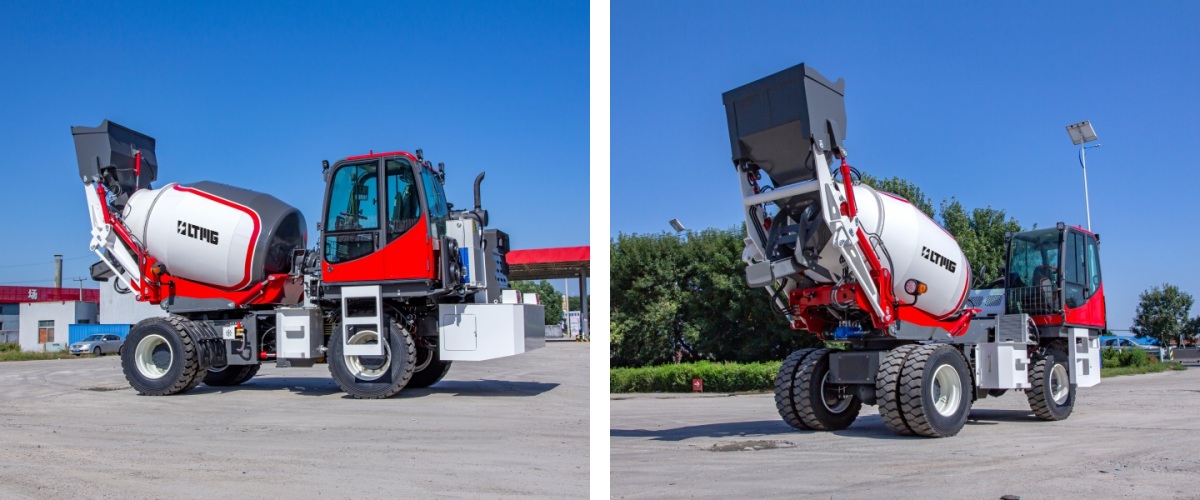

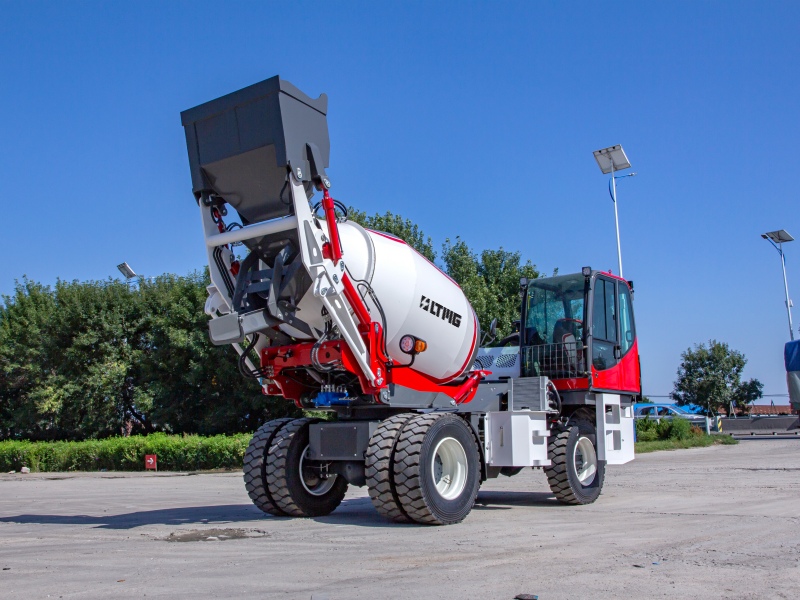

The 3.5m³ Concrete Mixer Truck integrates loading, mixing, transporting, and discharging for efficient on-site concrete production. With powerful performance, flexible operation, and a comfortable driving environment, it is ideal for construction projects, road works, foundations, and other demanding sites.
Model :
LTM40Berat :
9500 KGPanjang lebar tinggi :
6970×2850×4320 (Lifting arm) mm
The Features Of The Self Loading Concrete Mixer Truck
1. Efficient Mixing & High Productivity: The integrated loading, mixing, transporting, and discharging system streamlines on-site concrete production, reducing handling requirements and improving overall working efficiency.
2. Powerful Performance & Reliable Operation: A powerful diesel engine, heavy-duty drivetrain, and articulated frame provide strong traction and stable performance, enabling reliable operation across demanding terrains and challenging job sites.
3. Flexible Operation & Convenient Discharging: The synchronous rotation of the mixing drum and driver's cab provides greater flexibility during positioning and concrete discharging, while the hydraulic system and pilot-operated controls ensure smooth and convenient operation.
4. Comfortable Driving & Practical Configuration: The ergonomic operating environment, shock-absorbing seat, digital dashboard, camera monitoring system, LED lighting, and other practical features enhance driving comfort, visibility, and ease of operation.
The Specification Of The Self Loading Concrete Mixer Truck
| Parameter | Unit | LTM40 |
| Vehicle Size (L × W × H) | mm | 6970×2850×4320 (Lifting arm); 8420×2850×3260 (Drop arm) |
| Wheelbase | mm | 3200 |
| Track Width | mm | 1710 |
| Overall Weight | kg | 9500 |
| Engine | / | YCD4J22T-125 / YC6J125Z-T20 |
| Power | kW | 91/92 |
| Gearbox | / | 315 Separated |
| Drive Axle | / | 3.0T Wheel side reduction axle |
| Tyre | / | 16/70-R22.5 double tyre |
| Capacity of Bucket | m³ | 0.65 |
| Stirring Capacity | m³ | 4 |
| Reduction Ratio | / | 0.113194444 |
| Rotate Speed | r/min | ≥15 |
| Reducer | / | Made in China |
| Running Speed | km/h | 35 |
| Drive Type | / | 4×4 |
| Water Tank Capacity | L | 700 |
| Diesel Tank Capacity | L | 150 |
| Hydraulic Tank Capacity | L | 140+35 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
LTMG Hot Selling Products
FAQ
A: The hourly output of a self-loading concrete mixer depends on more than its drum capacity. Actual production is determined by the complete operating cycle, including loading aggregates, adding water and cement, mixing, traveling to the pouring location, discharging, and returning for the next batch. Short material transportation distances, centralized stockpiles, good site organization, and an experienced operator can significantly improve productivity. Conversely, scattered materials, long travel distances, or difficult road conditions can reduce hourly output. Therefore, the actual working cycle and jobsite layout should be considered when estimating the concrete production capacity of a self-loading mixer.
Q: Can a Self-Loading Concrete Mixer Maintain a Consistent Concrete Mix Ratio?
A: Yes, provided the machine has an accurate weighing system and is operated according to the specified mixing procedure. Aggregates and sand are normally loaded using the front bucket, while water can be controlled through the onboard water tank and metering system. Cement may be added in bags, bulk bags, or other suitable forms depending on the application. For projects requiring precise concrete mix proportions, an electronic weighing system and water metering device are recommended. Regular calibration is also important to maintain weighing accuracy. For laboratory-designed concrete mixes, material quantities should be measured rather than estimated only by bucket loads.
Q: Can a Self-Loading Concrete Mixer Operate on Mountain Roads, Muddy Ground, or Unpaved Terrain?
A: Yes, selected self-loading concrete mixer models are designed for demanding off-road applications and can be configured with four-wheel drive, heavy-duty tires, and high ground clearance. These features can improve mobility on mountainous roads, rural construction sites, mining areas, muddy ground, and unpaved roads. However, the machine's off-road performance depends on the actual terrain and operating conditions. Before selecting a model, factors such as maximum gradient, road width, soil conditions, ground stability, and seasonal weather should be considered. For challenging terrain, a 4WD self-loading concrete mixer with suitable off-road tires may provide better traction and operating stability.
Q: How Should a Self-Loading Concrete Mixer Be Operated on Slopes?
A: Slope operation requires additional attention because the concrete inside the drum moves as the machine travels, creating a dynamic load that can affect the machine's center of gravity. The climbing capability of an unloaded self-loading concrete mixer should therefore not be used as the sole reference for full-load operation. On steep slopes, operators should avoid traversing sideways across the slope, making sudden turns, or driving downhill at excessive speed. The load should also remain within the recommended operating range. For mountainous construction projects, providing the expected maximum longitudinal and lateral gradients in advance allows the appropriate mixer to be selected based on operating weight, drivetrain, braking system, tire configuration, and overall stability.
